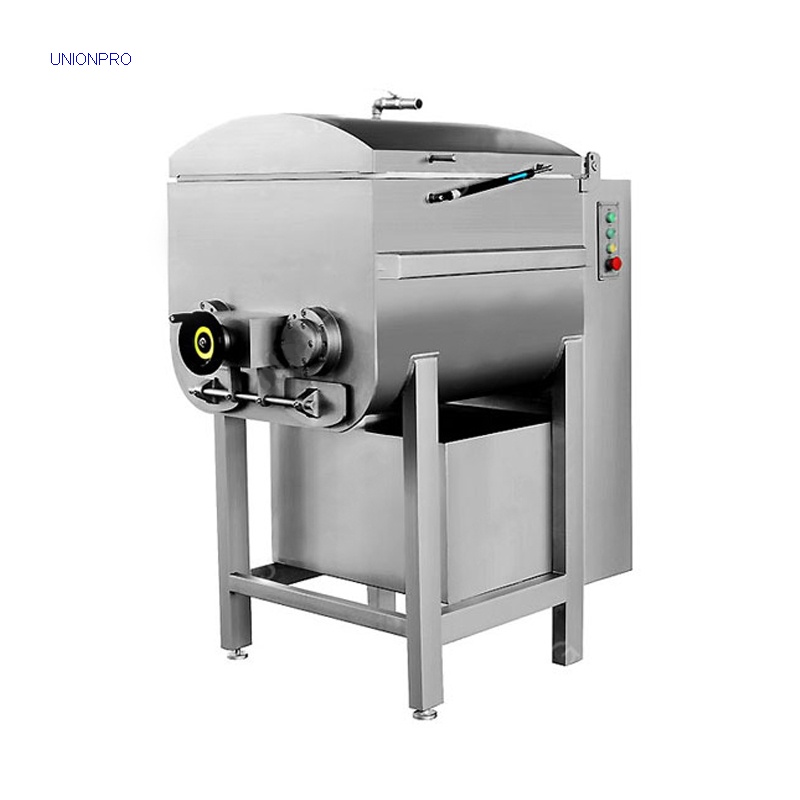

Vacuum Meat Mixer 340L with Twin-Axial
Vacuum Meat Mixer 340L with Twin-Axial Vacuum Meat Mixer 340L with Twin-Axial Vacuum Meat Mixer 340L with Twin-Axial
Product name : Vacuum Meat Mixer 340L with Twin-Axial
Product No. : VM340I
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Application and Feature:

This meat mixer will mix the material evenly and inflated sufficiently with good flexibility, bright color and the ability of extracting protein to the maximum limit.

Whole machine is made of stainless steel, which enables the machine to have good reliability, durability, airtightness and convenience to clean. The backward open structure makes it safe and reliable.

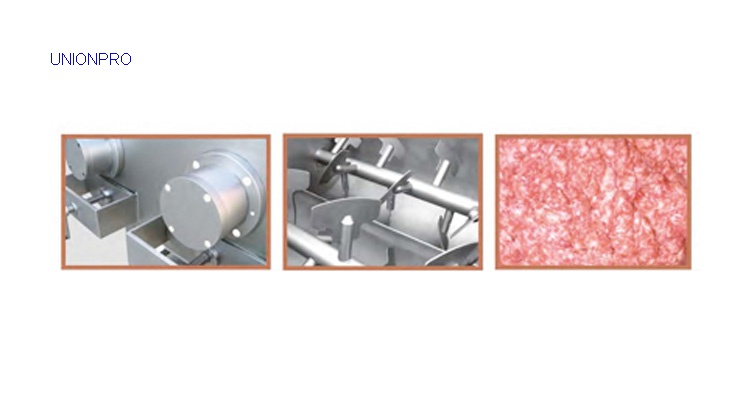

The parallel twin-axial structure and spiral type blades will make the materials at the optimum degree for various process requirements.


About VM340I:

VM Series vacuum mixer reaches advanced international mixing technology and localization meat processing. This mixer produces evenly mixed and bubble-free meats with perfect elasticity, which makes it becomes the top choice in market.
The mixer is made of quality stainless steel, solid, durable and hygienic.
VM series vacuum meat mixer is equipped with high performance vacuum system; and vacuum rate can be set up.

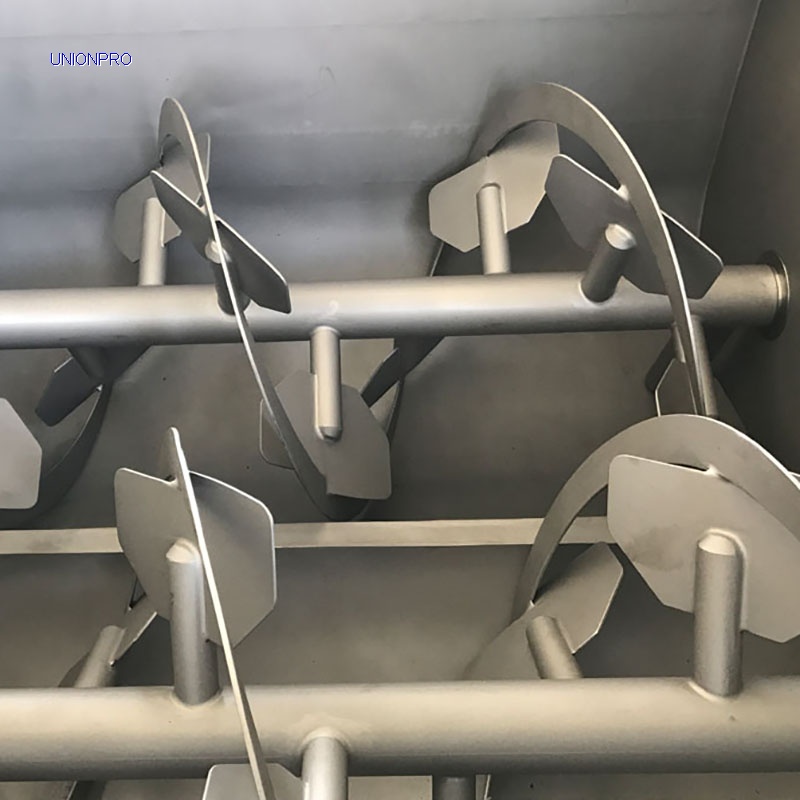

The parallel twin shafts equipped with palm-vane and pushing-ring make a uniform mixing result. Total mixing time, interval time and mixing types can be set up.

Model
M150
M340
M400
VM340I
Capacity
Approx 100kg/batch
Approx 240kg/batch
Approx 280kg/batch
Approx 240kg/batch
Power
2KW
4.4KW
2.2KW/2.3KW*2
4.95KW
Material Cylinder
150L
340L
400L
340L
Vacuum Rate
/
/
/
-60~ -85Kpa
Shaft Speed
42 rpm
42 rpm
50/100 rpm
42 rpm
Power Supply
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
External Size
1200*682*1060mm
1340*900*1380mm
1400*900*1500mm
1340*900*1610mm
