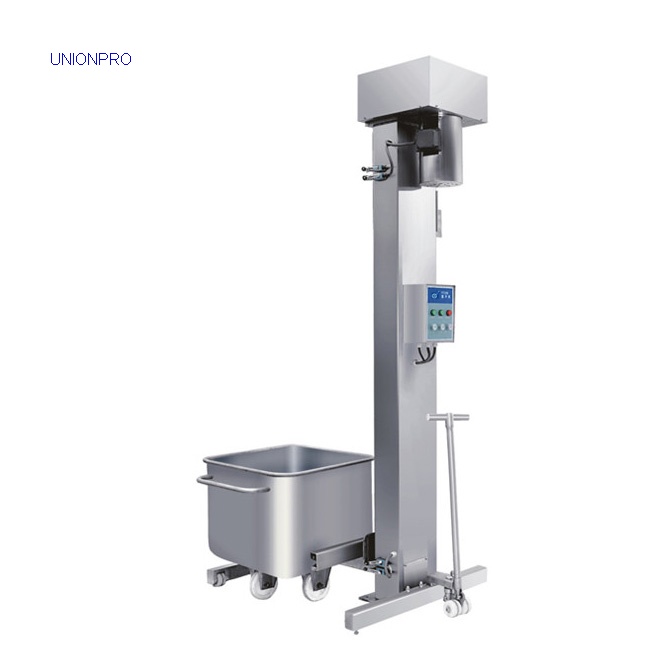

Movable/Fixed Meat Hoister with Tote Bin
Movable/Fixed Meat Hoister with Tote Bin Movable/Fixed Meat Hoister with Tote Bin Movable/Fixed Meat Hoister with Tote Bin Movable/Fixed Meat Hoister with Tote Bin
Product name : Movable/Fixed Meat Hoister with Tote Bin
Product No. : TB200/FH200/MH200

Online Inquiry         Email Us

  Details:
Feature:

1.The machine can raise a 200L standard hopper to designated position, and pour the material into appointed equipment.
2.Reduce labor intensity and increase productivity.
3.A complete machine adopts stainless steel material, chain type and screw type.
4.Run smoothly and safely, easy to clean and operate;Adopt the imported double stroke on-off control.
5.Installation:fixing on the ground or moveable.

Remark:

This machine is customized according to different special requirements.

Guardrail is customizeable.

Please kindly let us know further details about special requirements, thank you in advance.

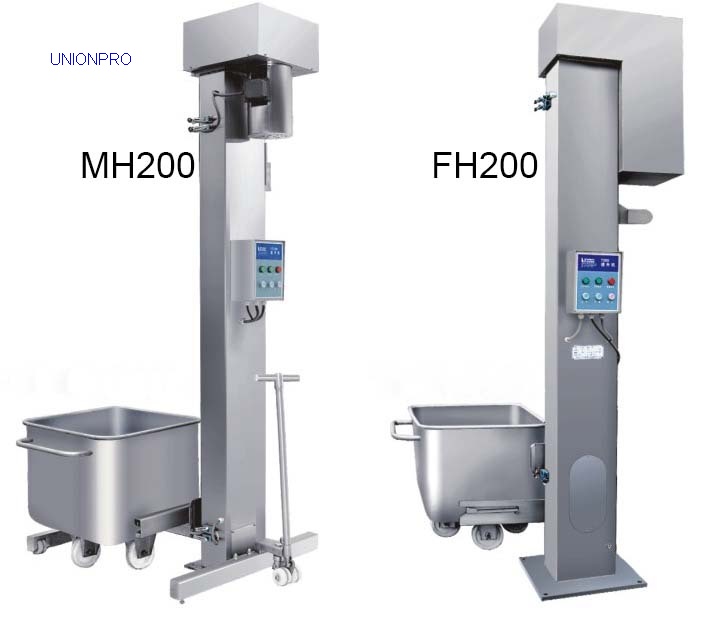

Model
FH200/MH200
Lift Weight
200kg
Lift Speed
5.4m/min
Lift Height
1.3~1.8M(2M can be customized)
Power
1.1KW
Machine Weight
400kg
Dimension
1200*1100*2800mm
Overall Size
1400*1130*2800mm
Electric Parts
DELIXI
Material
SUS304 food grade stainless steel

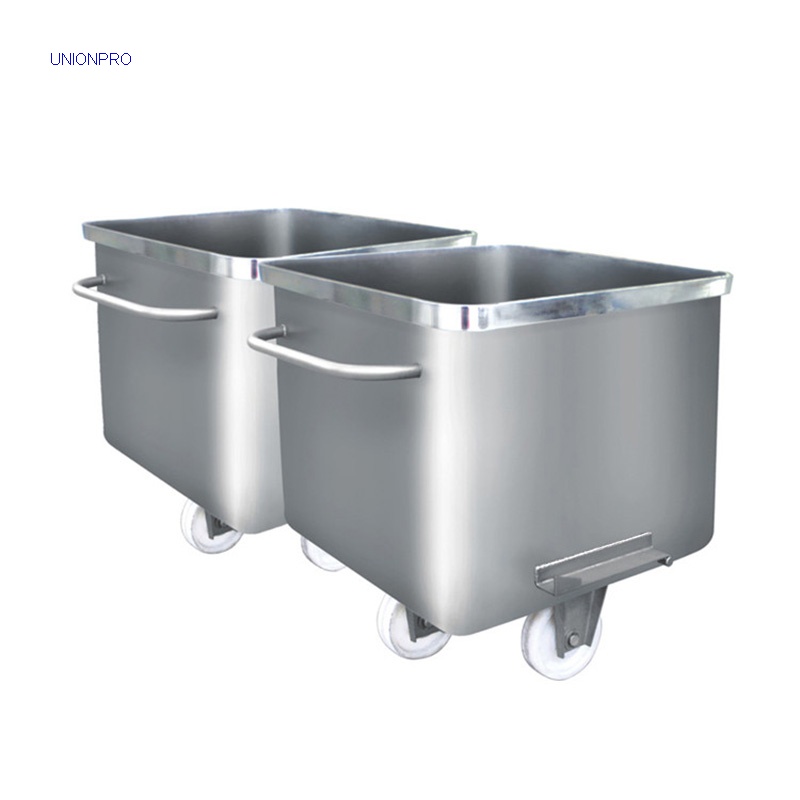

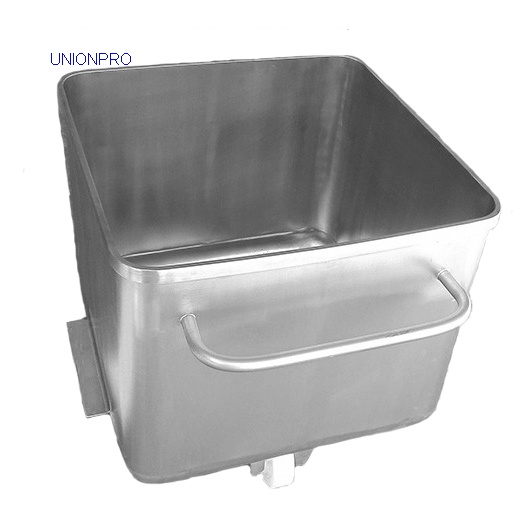

Model
TB200
Volume
200L
Side Sheet Thickness
2.5mm
Bottom Thickness
3mm
Inner Height
535mm
Bin Size
644*644*720mm
Overall Size
700*700*800mm
Weight
40kg
Packing
2~6pcs/pallet
Material
SUS304 food grade stainless steel

The location of the lift lugs is suitable for all standard lifters
Round edge with solid rod inside or solid bar fully welded, guarantees the maximum strength avoiding contamination risks.
